Investing in a continuous sponge foaming machine changes a factory’s output and its bottom line. The wrong machine causes daily quality problems, scrap waste, and production stops that hurt margins long after the upfront price is forgotten. Wang Jian, a polyurethane equipment engineer with over fifteen years of experience integrating foaming lines into factories across Asia, has seen that the most expensive machine is rarely the best choice. What matters is whether the machine fits your product portfolio, factory floor, and process flow. This guide explains what to evaluate before buying a continuous sponge foaming machine, from material handling and mixing precision to layout constraints and long-term support.
Define Your Foam Product Specifications First
Before comparing machine brands, lock in the types of flexible polyurethane foam you will produce. The same continuous foaming machine that runs a 16 kg/m³ soft sponge for furniture may not handle a 55 kg/m³ high-resilience (HR) slab reliably without modifications.
Start with a clear data sheet: required foam density range, hardness (ILD), final foam block width and height, and any fire-retardant standards like BS 5852 or CA TB 117. If you plan to pour polyether, polyester, and memory foam on the same line, list each grade’s chemical system, reactivity profile, and target cell structure. Our team often sees factories order a machine for “general sponge” and then discover the mixing head cannot keep up when they switch to a fast-cream memory foam formulation. The result is streaking, collapsed cells, and off-spec blocks.
Write down the amine catalysts, tin catalysts, silicone surfactants, and blowing agents each formulation requires. A machine with an inadequate number of separate chemical metering channels forces you to premix additives, which degrades consistency. At this stage, involve your chemical supplier. They can confirm whether your target recipes need high-pressure impingement mixing or if a low-pressure mechanical mixer suffices.
Match Machine Capacity and Layout to Your Factory Floor
A continuous sponge foaming machine produces foam slab at a set throughput, usually measured in kilograms per minute of total polyol and isocyanate output. A 100 kg/min line running 50 kg/m³ foam fills a 2 m × 1.2 m × 40 m block in roughly 48 minutes. But the machine alone is only one part of the line. You also need enough space for the mix head traversing system, the fall-plate or Maxfoam trough, the conveyor with side paper handling, the curing room (maturation area), and the cutting station.
Measure your available floor length, column spacing, and clear height. A typical continuous foaming line with a 30-meter conveyor needs a building at least 80 meters long once you add raw material storage, preheating ovens, ventilation, and finished block handling. Ceiling height must accommodate the mix head bridge crane and exhaust hoods—usually 6 to 8 meters. If your factory ceiling is lower, a TDI-based foam line’s ventilation may not meet exposure limits. We have walked into factories where the chosen machine would have blocked forklift aisles and forced workers to move raw drums across the production floor every shift, adding eight hours of unproductive labor per week. Mapping the material flow from tank farm to curing rack before ordering prevents these oversights.
Assess Mixing Head and Metering Precision
Mixing head performance separates a machine that makes saleable foam from one that generates scrap. The mix head must shear the polyol and isocyanate streams into a homogeneous blend without introducing air or leaving static dead zones. Our Haifeng E-Type mixing head, for example, uses a multi-stage spiral dynamic element that brings mixing uniformity to ≥99.5% per ASTM D3795, and a constant-temperature chamber keeps fluctuation within ±0.5°C. That level of control reduces stripe defects and density gradients across the block width.
Metering accuracy is the second half of the equation. Gear pumps with servo drive closed-loop control can hold the A:B ratio to ±0.5% even as viscosity shifts on cool mornings. Machines that rely on simple variable-speed pumps without flow correction drift over time. One factory we supported had a density variation of ±2.5 kg/m³ at the start of a shift, which gradually stabilized after raw material preheaters brought drum temperatures to 25°C. The problem disappeared after installing an in-line temperature-conditioning system and a pump feedback loop. If your program involves running multiple foam grades on the same day, confirm that the mixing head can self-clean between recipes and that changeover time is under three minutes. Delays here cascade into lost conveyor time and cured foam stuck in the trough.
Understand Production Flexibility for Different Foam Types
Many buyers want a single continuous sponge foaming machine that can pour mattress foam in the morning and shoe midsole foam in the afternoon. In practice, the chemistry limits this freedom. Low-density polyester foam often uses a wide-delivery trough, while high-density HR foam benefits from a fall-plate system that gently lays the reacting mixture to avoid shearing the rising foam. A Maxfoam-style machine works well for conventional polyether slab but may leave large voids in viscoelastic memory foam because the reactive mass cannot support its own weight during the rapid vertical rise.
The table below summarizes the differences between common configurations:
| Foam Type | Density Range | Typical Machine Configuration | Key Compatibility Note |
|---|---|---|---|
| Soft Polyether | 12–25 kg/m³ | Open trough / Flush box | Good for standard widths up to 2.3 m |
| HR Foam | 30–55 kg/m³ | Fall-plate or trough with positive feed | Requires precise temperature control |
| Memory Foam | 40–80 kg/m³ | Narrow trough / Maxfoam less common | Very sensitive to air entrainment |
| Polyester Sponge | 16–30 kg/m³ | Wide trough with strong ventilation | Needs corrosion-resistant wetted parts |
If your production plans span three of these categories, budget for a flexible metering system with additional additive pumps and a mixing head that accepts different agitator assemblies. The alternative—two dedicated lines—often pays for itself in reduced waste and less frequent cleaning cycles.
Evaluate Total Cost of Ownership and After-Sales Support

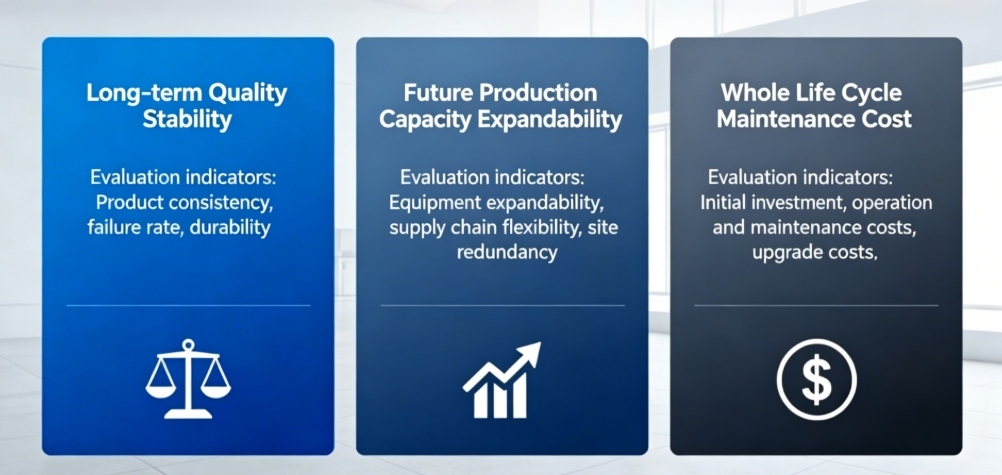

The invoice price of a continuous sponge foaming machine is the most visible number, but it tells you nothing about the true cost over ten years. Track what each kilowatt-hour adds to your operating margin. A low-pressure foaming machine, for example, typically draws 30% less power than a high-pressure equivalent of the same output, simply because it avoids energizing hydraulic systems for impingement mixing. Over a decade, that difference can exceed the initial capital savings of a cheaper, high-pressure unit. Check the machine’s compressed air consumption, as well; poorly designed air nozzles on the paper handling system run continuously and waste thousands of dollars annually.
After-sales support determines how long a line stays down after a breakdown. Ask potential suppliers how many service engineers are based in your region, what spare parts they stock locally, and whether they provide remote troubleshooting. A machine that ships without local support costs production hours, not just repair bills. Our team maintains regional service depots in Southeast Asia and the Middle East, and we keep critical components like gear pumps, mechanical seals, and PLC modules ready for same-day dispatch. If a supplier cannot show you a local service contact, assume you will shoulder the downtime alone.
Choosing a Continuous Sponge Foaming Machine that Fits Your Operation
A factory that buys a machine based on an attractive price instead of a thorough process fit ends up with a production line that fails daily in small ways. Every day, a servo motor hunts for the correct position, a temperature sensor drifts, or a cleaning cycle takes too long, and the factory loses blocks that should have sold for full price. We have helped factories correct these mismatches, and the root cause is almost always a rushed purchasing decision that overlooked material flow, floor constraints, or chemical compatibility.
If you are comparing continuous sponge foaming machines or planning a new foam production facility, send us your target foam grades, required block dimensions, and available floor space. Our engineering team will recommend a machine configuration that aligns with your current output and leaves room for future product expansion. Email info@haifeng-automation.cn or call +8613566296633 for a technical consultation.
Common Questions About Continuous Sponge Foaming Machines
Can a single machine handle both soft foam and memory foam?
A single machine can pour both if it offers separate additive injection points, a flexible trough design or fall-plate option, and mixing head inserts that accommodate the faster cream time of memory foam. Standard polyether soft foam rises slowly, so the mixing trough can be wide. Memory foam catalysed to gel in under 30 seconds needs a narrower pour area and tighter air control to prevent voids. In programs we have supported, the most reliable approach is a machine with quick-swap agitator assemblies and a nitrogen blanket to reduce air entrainment, plus a tank preheating system that keeps the memory foam polyol blend at 22–25°C before metering.
What production capacity should I expect from a 100 kg/min line?
At full output, a 100 kg/min line theoretically produces 6,000 kg per hour. Foam weight depends on density: at 20 kg/m³, 6,000 kg equals 300 cubic meters. For a block width of 2.0 m and height of 1.0 m, the conveyor speed would need to be 150 m/h. In practice, you derate by 10–15% for start-up, shutdown, and formula changeovers. So a typical 100 kg/min line running 20 kg/m³ foam averages 250–270 m³/hour. For higher densities, the hourly volume drops proportionally but the per-unit weight stays similar, so your cutting and packing capacity becomes the bottleneck before the foaming machine does. Align the downstream finishing speed with the line’s sustained rate, not its peak.
How much floor space does a continuous foaming line need?
A complete line with a 30 m conveyor needs about 80 m × 12 m, plus separate tank farm and raw material storage. The conveyor length itself is only part of the requirement. Add 6 to 8 m at the mix head end for chemical day tanks and premix stations, and 20 to 30 m after the conveyor for curing racks and side-trim removal. If you produce blocks longer than 30 m, the curing area must hold several parallel lines of stacked blocks. An existing factory with columns spaced every 6 m may need structural rework to accommodate the bridge crane, so measure both column spacing and the available lifting height before locking in machine dimensions.
What causes density variation across a foam block?
The most common cause is a temperature-induced viscosity shift in the polyol or isocyanate stream. When raw material drums sit on a cold factory floor overnight, the gear pump’s speed no longer matches the actual mass flow because viscosity has risen 50–80%. Without an in-line density feedback loop, the A:B ratio drifts, and the foam density wanders. Poor mixing head design, such as a straight-through chamber without shear plates, creates secondary flows that leave high-density streaks along the block edges. If your finished foam shows a consistent left-right density difference, check the trough leveling, the side-paper tension, and whether the traversing head is uniformly distributing the mixture. Start with the raw material temperature—fix that first, and half the problems disappear.
How long should a continuous foaming machine last with proper maintenance?
A well-built machine with a fabricated steel frame and cast iron pump bodies can operate for 20 years or more. The life-limiting components are the gear pumps, mechanical seals, and mixing head bearings. With daily cleaning and quarterly inspection, pump elements typically require replacement after 5,000 to 8,000 running hours, depending on filler content in the polyol stream. The PLC and servo drives may need retrofitting around year 12 to maintain software compatibility. We advise keeping documentation of every maintenance action and running a weekend diagnostic cycle that checks pump pressures, temperature control loops, and safety interlock signals. If your program calls for a continuous foaming machine that must run 24/7 for months, share your production quality targets and we can confirm the maintenance schedule that matches your uptime goals.
